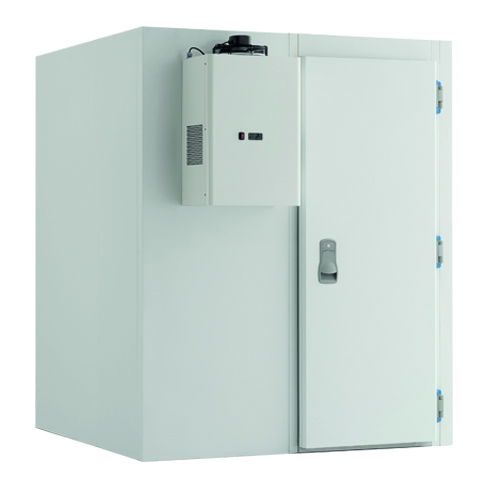

MODULAR COLD ROOM

DESCRIPTION

  • Crystal produces a range of more than 80 standard models of modular cold rooms.
  • 80 or 120 mm panel thickness options.
  • 42 kg/m³ density polyurethane insulation.
  • Modular panels allow easy assembly.
  • Double side locking system: perfect combination, installation without any bolt or silicone.
  • Perfect door match with gaskets and easy heat system (Easy heating system is available at deep freeze rooms)
  • Wide range of models from 2,4 m³ to 14,9 m³.
  • Internal and external panels designed in accordance to hygiene standards.
  • Production with CFC-free high pressure injected polyurethane insulation.
  • Quick and easy assembly due to the integral locking system.
  • Powerful and economic cooling system to reach the desired temperature in a short time.
  • Easy cleaning and hygienic stainless steel floors.
  • Ergonomic, convenient shelves suitable for different room dimensions.
  • Energy saving LED illumination.

ROOM TEMP.

0 / +8

CAPACITY (m³)

3 – 6

AMB. TEMP. (°C)

30

VOLTAGE (Hz)

230 / 50 – 60

POWER (Hp)

1 / 2

REFRI. GAS

R 404 A

ROOM TEMP.

0 / +8

CAPACITY (m³)

6 – 9

AMB. TEMP. (°C)

30

VOLTAGE (Hz)

230 / 50 – 60

POWER (Hp)

3 / 4

REFRI. GAS

R 404 A

ROOM TEMP.

0 / +8

CAPACITY (m³)

9 – 12

AMB. TEMP. (°C)

30

VOLTAGE (Hz)

230 / 50 – 60

POWER (Hp)

1

REFRI. GAS

R 404 A

ROOM TEMP.

0 / +8

CAPACITY (m³)

13 – 17

AMB. TEMP. (°C)

30

VOLTAGE (Hz)

230 / 50 – 60

POWER (Hp)

1 1 / 2

REFRI. GAS

R 404 A
